The valve, which is also named splitting machine/ depiler, is widely used in building material, metallurgy, mining, light industry and food industries etc. It is the ideal equipment to change flow direction of solid crystal and powder material in transportation system.

  • Structure characteristic:

The splitting machine/ depiler, is welded in fine steel and equipped with different actuators according to the different demands. It has the features of lightweight, antifriction, definite indicating direction, handy switching and flexible operation etc.

Type Ⅰ is side three-way depiler type Ⅱ is face three-way depiler, type Ⅲ is four-way depiler The driving types are five: S denotes manual, D denotes electric, Z denotes automatic, Q denotes pneumatic and Y denotes electric hydraulic.

  • Performance parameter:
Working pressure Suitable temperature Suitable material specific gravity Suitable medium
0.01MPa ≤300℃ ≤2.5t/m3 Crystal, grain and powder etc
Type 200~250 300~400 500~600 700~800
Electric draw stem DTⅠA63-MP:0.06KW DTⅠA63-MP:0.09KW DTAⅡ100-MP:0.25KW DTⅡA250-MP:0.37KW
Automatic device DKJ-210P:0.025KW DKJ-310P:0.065KW DKJ-410P:0.16KW DKJ-510P:0.25KW
Pneumatic draw stem 10A-5TC50B 10A-5TC63B 10A-5TC80B 10A-5TC100B
Electric hydraulic DYT100P:0.37KW DYT300P:0.37KW

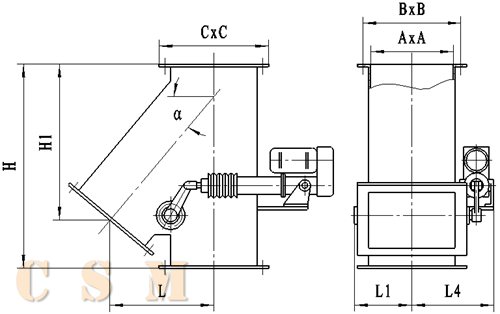

SFC---ⅠAppearance figure

SFC—ⅠAppearance figure

ZFC---ⅠAppearance figure

ZFC—ⅠAppearance figure

DFC---ⅠAppearance figure

DFC—ⅠAppearance figure

QFC---Ⅰ Appearance figure

QFC—Ⅰ Appearance figur

YFC---ⅠAppearance figure

YFC—ⅠAppearance figure

A B C α H H1 L n-d L1 L2 L3 L4 L5 L6
200×200 245×245 280×280 45º 530 394 289 8-Φ10 180 220 220 290 320 340
50º 600 445 293
55º 650 505 290
60º 735 594 295
250×250 305×305 350×350 45º 605 448 338 12-Φ10 220 250 250 310 345 410
50º 675 512 342
55º 735 595 346
60º 820 706 355
300×300 355×355 400×400 45º 690 499 374 12-Φ12 250 280 280 375 370 440
50º 750 568 380
55º 820 658 380
60º 910 791 405
400×400 455×455 500×500 45º 825 598 463 16-Φ12 280 325 325 425 420 470
50º 930 709 490
55º 1020 859 504
60º 1155 1005 505
500×500 555×555 600×600 45º 1000 755 575 20-Φ14 350 385 395 480 500 520
50º 1110 888 597
55º 1250 1052 632
60º 1425 1260 647
600×600 655×655 700×700 45º 1297 921 706 20-Φ14 400 450 450 540 550 570
50º 1430 1097 742
55º 1500 1223 731
60º 1677 1481 768
700×700 755×755 800×800 45º 1450 1029 779 20-Φ14 450 500 500 630 620 650
50º 1520 1163 809
55º 1708 1421 850
60º 1863 1646 850
800×800 855×855 900×900 45º 1555 1125 860 24-Φ14 500 550 550 680 670 700
50º 1702 1327 907
55º 1892 1594 946
60º 2145 1885 913
A B C α H L n-d L1 L2 L3 L4 L5 L6
200×200 245×245 280×280 45º 267 177 8-Φ10 180 220 220 290 320 340
50º 282 174
55º 299 161
60º 352 160
300×300 355×355 400×400 45º 322 212 12-Φ12 250 280 280 375 370 440
50º 349 209
55º 386 204
60º 431 200
400×400 455×455 500×500 45º 381 251 16-Φ12 280 325 325 425 420 470
50º 419 251
55º 448 244
60º 525 245
500×500 555×555 600×600 45º 470 310 20-Φ14 350 385 395 480 500 520
50º 532 320
55º 557 290
60º 644 300
600×600 655×655 700×700 45º 502 290 20-Φ14 400 450 450 540 550 570
50º 561 310
55º 643 330
60º 738 340
700×700 755×755 800×800 45º 617 380 20-Φ14 450 500 500 630 620 650
50º 678 400
55º 795 420
60º 937 442
800×800 855×855 900×900 45º 672 408 24-Φ14 500 550 550 680 670 700
50º 763 445
55º 900 482
60º 1057 493
A B C α H H1 L n-d L1 L2 L3 L4
200×200 245×245 280×280 45º 530 394 578 8-Φ10 440 580 640 680
50º 600 445 586
55º 650 505 580
60º 735 594 590
250×250 305×305 350×350 45º 605 448 676 12-Φ10 500 620 690 820
50º 675 512 684
55º 735 585 692
60º 820 656 710
300×300 355×355 400×400 45º 690 499 748 12-Φ12 560 750 740 880
50º 750 568 760
55º 820 638 760
60º 910 741 810
400×400 455×455 500×500 45º 825 598 926 16-Φ12 650 850 840 940
50º 930 699 980
55º 1020 784 1008
60º 1150 935 1010
500×500 555×555 600×600 45º 1000 730 1150 20-Φ14 790 960 1000 1040
50º 1110 838 1194
55º 1250 972 1264
60º 1425 1170 1294
600×600 655×655 700×700 45º 1297 921 1412 20-Φ14 900 1080 1100 1140
50º 1430 1027 1484
55º 1500 1133 1462
60º 1677 1351 1536
700×700 755×755 800×800 45º 1450 1029 1558 20-Φ14 1000 1260 1240 1300
50º 1520 1128 1618
55º 1708 1311 1700
60º 1863 1506 1700
800×800 855×855 900×900 45º 1635 1125 1720 24-Φ14 1100 1360 1340 1400
50º 1702 1232 1814
55º 1892 1449 1892
60º 2145 1735 1826
  • Working principle

The valve is mainly made up of body, separating plate, transmission shaft, bearing support, sealing, rocker and transmission device etc. Push the heavy hammer of manual valve and switch the flow direction according to the requirement. Command control unit of electric valve power the DT electric draw stem and push the rocker to rotate valve axle in order to switch medium flow direction. The automatic valve is equipped with DKJ electric actuator, which receives and adjusts the control sign of DCS, PLC epistasy meter or manual control sign of operating and outputs angle displacement to drive transmission shaft, then drive separating plate rotating with rocker and valve axle. The open angle of electric actuator and separating plate feeds back 0~10mA or 4~20mA DC signal. Users can control the open angle of plate according to the current signal to adjust the valve. Pneumatic valve is equipped with type 10A-5 pneumatic element and pneumatic draw stem driven by double-control two-bit five-way electric control reversal valve, pushing rocker to drive the axle and plate and switch the flow direction of medium. Electric hydraulic valve is equipped with type DYT electric hydraulic draw stem; it pushes the rocker to drive axle and plate and switch flow direction of medium and meets the requirement of working conditions.

  • Transportation and protection

1. Avoid bumping and the valve is in full close in order to avoid damage of disc and driving part.

2.Transmission device and part should be hung up when the valve is in horizontal in order to prevent damage of driving axle.

3. Treatment of dampproof and rainproof should be done to transmission device and part.

4. The valve should be stored in dry room. It should be in full close state when long stored. Add lubrication to the transmission part and the device should be dampproof and dustproof.

  • Maintenance and examination:

1.Examine the operating condition of driving part regularly.

2.Replace the lubrication of actuator reducer, lubricating grease of electric draw stem and motor oil of electric hydraulic draw stem regularly.

3.Examine the seal condition of rotate axle regularly. Replace or add graphite stuffing if there is mistake.

4.Examine the plunger joint ring of electric hydraulic draw stem and pneumatic draw stem in order to ensure the normal operation of transmission device.

  • Information for order:

1. Please indicate the type, model, angle of the valve and technical parameter (using temperature, working condition of equipment and characteristic of medium etc) referring to the product sample when you place an order.

2.Product legend in the sample and actuator code in the form is the basic collocation of our company. If you have especial demand (anti-explosion, outdoors, adjusting type and switch type etc) to another actuator, please refer to the explanation of corresponding actuator code in the sample appendix and indicate it below the basic model.

3.If you don’t indicate actuator code selected by user when you place an order, we will select the basic collocation of our company for you. The basic type is a normal type without any special request and corresponding accessory.

4.If you have other special demand, need special medium or the spec that is not listed in the table, please contact with our department of market and technology. We can design and manufacture for you especially but you must indicate your special demand in the contract.
