Electrical turning ring

Ⅰ.structure and use:

Electrical turning ring is made up with steel, belt turning system, electronic slid ring and control system.

Electrical turning ring mainly used in bag packaging materials delivering which is suitable for cement, food and chemical industry.

Ⅱ.Technical characteristics:

2. reducer

（1） Type: BL15-9-1.1

（2） Speed rate: 9

（3） Motor type: Y90S-4 Power : 0.55KW running speed: 1410r/min

Ⅲ.Electronic puncher

（1） Type: DT300-60

（2） Thrust: 300kg

（3） Speed: 84mm

（4） Motor type: A06332 Power: 0.55KW round speed: 2800r/min Voltage:380V, current: 1.38A

Ⅳ.Travel switch

（1） Type: JLXK1-111

（2） Voltage: 380V, current: 1.38A

Ⅴ.Technique requirements:

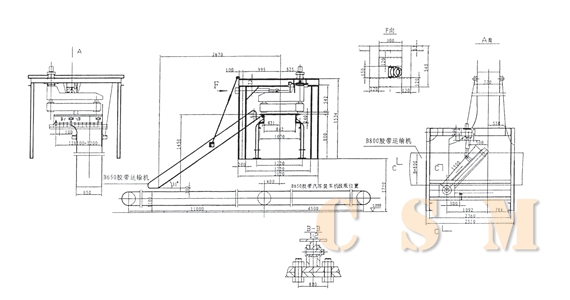

（1）Arrow A points to cement bags delivered to B650 from B800;

（2）Cement bags into turning ring from B800 should be putted in order, crossed bags are forbidden.

（3）Travel switch will be installed in the jobsite.
